What color is usually the ground wire?
Owen Barnes
green
Also asked, how do I know which wire is ground?
know what each color of wire does in the circuit The plain (or it can sometimes be green) wire is the "ground" wire, which will take electricity back to the breaker panel, then outside to a rod that's buried in the ground. This is to prevent the electricity from running through you!
Also, is red or black the ground wire? The ground wire is usually left bare, but in some cases, the ground wire color is green. In a three-conductor cable, the extra wire is red, and it's almost always used as a hot wire.
Keeping this in view, is Green always the ground wire?
A green or bare ground wire almost always makes a ground connection—to a ground screw on a device, electrical box, or appliance case or to a green wire lead.
What color is automotive ground wire?
black
Related Question Answers
Why does my outlet have 2 black and 2 white wires?
Since this one has more, it means it is part of a "series". A "series" means there are 2 or more outlets powered by the same wiring and circuit. The other set of black and white wires goes to the next outlet down the line and that's how it gets its power.What if both wires are black?
Black means hot, white signifies neutral, and green indicates ground. However, if you need to rewire a light switch or a plug socket, you may occasionally come across two black wires. It's essential that you determine which black wire is hot before proceeding.Is black wire always ground?
Black electrical wire is used for power in all circuits. Any circuit's black wire should be considered hot or live. Black wire is never used for a ground or neutral wire and should be used as the power feed for a switch or an outlet.Why does light switch have 2 black wires?
The bare or green-wrapped ground wires serve as a backup to divert the power safely away in case of an electrical fault. In most cases, two black wires will be attached to the switch's two terminal screws.Why are neutral and ground tied together?
The reason they're bonded at the panel is to ensure that we have no current flowing between neutral and ground relative to each other throughout the house. It's the same reason we bond to the plumbing system, CATV, telephone, etc so there's no potential between different electrical components.What happens if neutral wire is grounded?
The neutral is always referenced to ground at one, and ONLY one, point. If you touch the neutral to ground anywhere else, you will create the aforementioned ground loop because the grounding system and the nuetral conductor are now wired in parallel, so they now carry equal magnitudes of current.What causes a ground wire to get hot?
Electrical theory is fine but in this case the cause is a high resistance somewhere in the ground side of the circuit. Corroded connections on the ends of the cable including where the cable connects to it's end. Loose connection between cable and cable end. Corrosion inside the cable.What causes voltage on ground wire?
Stray voltage occurs when electricity “leaks” from the black wire directly to the white or ground wires before passing through the device to be powered. These leaks produce only small amounts of electricity.What do you do if the ground wire has no ground?
If the box is not grounded, you have two choices:- Run a ground to the box. This would mean running a new wire back to the panel (could be bare copper, but if you're doing the work may be better just to run a new wire - 14/3 would be the best), which could mean opening up drywall.
- Wire the fan without ground.
Is the green wire ground or neutral?
The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active.What do you do if you don't have a red wire?
If it is in a circuit that is wired as 240 volt in the panel it can be capped and taped as said (and labeled) then the circuit could be used as a 110V however that leg (red hot wire) should be removed from the breaker in the panel, labeled and left there in case the 240V is needed again.Do you connect the ground wire first?
Ideally you would connect any ground cables first as that ensures that it is safe to move on and around the equipment ant that you can safely work on all parts, then connect the zero wire followed by the phases.Can a ground wire be yellow?
reference to IEER regulation and ISC colour coding YES, yellow cable (not wire) can be use for as ground cable in accordance to British standard. but for American standard it is a green cable uce for the ground.Is red or white ground?
The ground wire is usually left bare, but in some cases, the ground wire color is green. In a three-conductor cable, the extra wire is red, and it's almost always used as a hot wire.Do I need to connect the red wire?
The answer is that the Red Wire is the Hot Wire from the switch itself. You are wiring your fixture into a junction box where buku wires come together. Hook the white to white, ground to ground and RED to the BLACK Light Fixture Wires. The other conglomeration of black wires does not connect directly to your fixture.What do black and red wires mean?
Both wires are same by Electrical and physical Characteristics. However, for easy trouble shooting and professional connections red wires are used for Lines and positive terminal Voltage points. Black wires are used for ground and negative terminal voltage points.Can red and black wires touch?
Your body can connect the wires if you touch both of them at the same time. Current will pass through your body. In most household wiring, the black wires and the red wires are at 120 volts. The white wires are at 0 volts because they are connected to ground.What does Brown Wire mean?
Brown is your hot wire so you want to connect that to your building's black wire. The blue is negative or return, so that will go to white. Green with yellow stripe is the ground and will go to the building green.Which is positive red or black wire?
In DC circuits, the positive pole is usually marked red (or "+") and the negative pole is usually marked black (or "−"), but other color schemes are sometimes used in automotive and telecommunications systems.What color is ground wire on 220?
Green GreenIs gray wire positive or negative?
In DC circuits, a grey wire is the negative.What color is the constant 12v wire?
Wiring Harness Color Standards| Wire Color | Wire Function |
|---|---|
| Yellow | 12V Constant / Memory |
| Red | Switch / Accessory |
| Black | Ground |
| Blue | Antenna Remote |
Is Brown Wire negative or positive?
Brown is your hot wire so you want to connect that to your building's black wire. The blue is negative or return, so that will go to white. Green with yellow stripe is the ground and will go to the building green.What are brown black and GREY wires?
Where a three-core cable with cores coloured brown, black and grey is used as switch wires, all three conductors being line conductors, the black and grey conductors should be marked brown or L at their terminations.What wire colors mean?

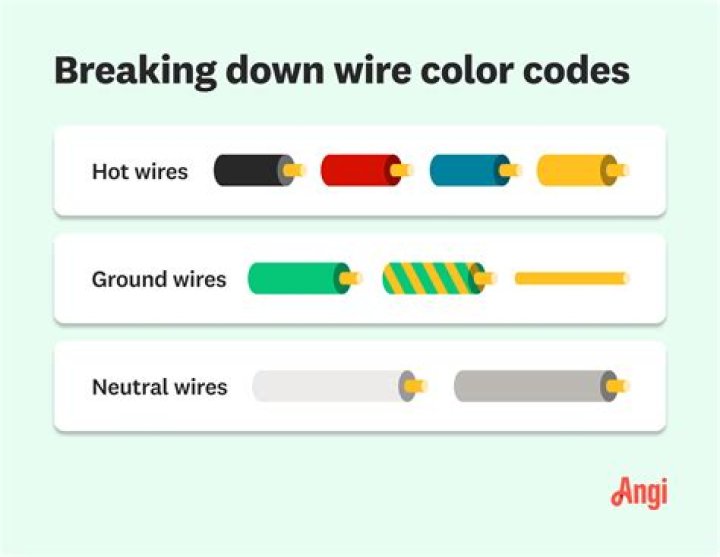

Yes, electrical wire colors do matter- Green, green with a yellow stripe, or bare copper. These are ground wires that keep you, your appliances, and your home safe from electrical fires.
- Black. Black indicates a hot or live wire that's carrying a current and is used for power in all circuits.
- Red.
- Blue & Yellow.
- White or Gray.
