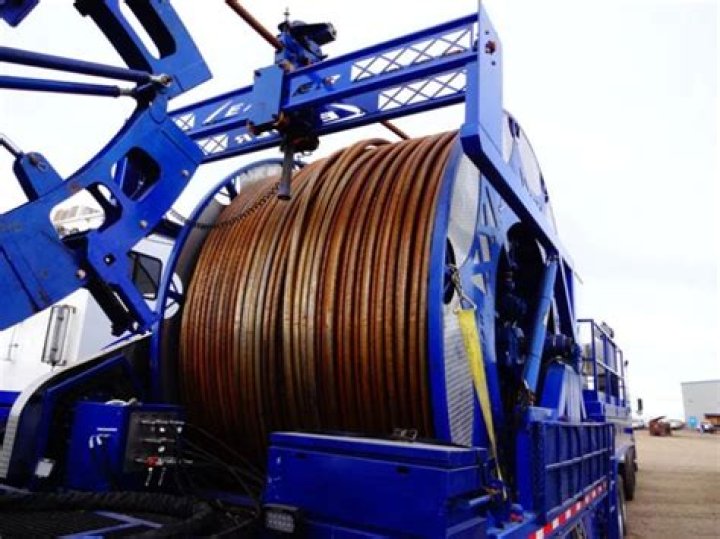

The coiled tubing is a continuous length of steel or composite tubing that is flexible enough to be wound on a large reel for transportation. The coiled tubing unit is composed of a reel with the coiled tubing, an injector, control console, power supply and well-control stack.

Similarly one may ask, how much does a coil tubing unit cost?

Coiled tubing cost ranges from $150,000 for small diameter to as much as $300,000 for larger diameter tubing, the report said. The report notes that one manufacturer said costs for 20,000 ft of 2-in. coil are $230,000-250,000. The reel itself costs $220,000 and can be reused if respooled with new tubing.

Also, when was coiled tubing invented? 1964

Also Know, how is coil tubing made?

Coiled tubing technology involves coiled tubing twisted on a drum that can be continuously withdrawn or lowered from the well without connecting thread. The coiled tubing is made of high-strength, low-alloy materials, which first is rolled straight and then welded together.

How do snubbing units work?

Snubbing is a type of heavy well intervention performed on oil and gas wells. It involves running the BHA on a pipe string using a hydraulic workover rig. Unlike wireline or coiled tubing, the pipe is not spooled off a drum but made up and broken up while running in and pulling out, much like conventional drill pipe.

Related Question Answers

How does coiled tubing work?

The coiled tubing is injected into the existing production string, unwound from the reel and inserted into the well. Coiled tubing is chosen over conventional straight tubing because conventional tubing has to be screwed together. Furthermore, sand control and cementing operations can be performed via coiled tubing.

What does a coil tubing operator do?

Coiled Tubing Operators

The primary role of the coiled tubing operator is to help with rig-up/rig-down, operation and maintenance of coiled tubing equipment.

What is the difference between wireline and coiled tubing?

Coiled tubing is often used to carry out operations similar to wirelining. The main benefits over wireline are the ability to pump chemicals through the coil and the ability to push it into the hole rather than relying on gravity.

What is a well intervention?

A well intervention, or well work, is any operation carried out on an oil or gas well during, or at the end of, its productive life that alters the state of the well or well geometry, provides well diagnostics, or manages the production of the well.

What is tubing in drilling?

Tubing transports the oil and gas from deep in the well to the surface – the third phase of the wellbore. Oil and gas occasionally rise to the surface on their own; usually, pumps are needed to bring the fluids to the surface. Tubing naturally has a smaller diameter than casing, except for the 4 1/2-inch diameter.

What is Decoiled pipe?

Bundles of de-coiled pipe. Coil Tubing unit inserting pipe into a well. Coiled Tubing (CT) is an oilfield tubular that has been defined as any continuously-milled tubular product manufactured in lengths that require spooling onto a take-up reel, during the primary milling or manufacturing process.

What is slickline in oil and gas?

Slicklines. Used to place and recover wellbore equipment, such as plugs, gauges and valves, slicklines are single-strand non-electric cables lowered into oil and gas wells from the surface. Slicklines can also be used to adjust valves and sleeves located downhole, as well as repair tubing within the wellbore.

What's a snubbing unit?

Snubbing Unit Applications

In essence, a snubbing unit is a hydraulic rig that can do everything a rig can do, plus it can perform under pressure in an under balanced live well state. This is especially critical to the operators in the Haynesville Shale, which is known for HPHT wells.

What is a snubbing operator?

Literally. Snubbing is a highly specialized oil and gas well maintenance function performed on active wells that are still under pressure. Snubbing Operators use snubbing equipment to insert drill pipe, tubing and specialized equipment into, or remove from, pressurized oil and gas wells.

How does a hydraulic workover unit work?

The HWO unit (Hydraulic Workover Unit) utilizes hydraulic cylinders to lift the tubular in- or out of the well. The use of hydraulic cylinders allows perfect control over tubular movements and eliminates the use of a large mast construction which is present on conventional drilling rigs.

How dangerous is snubbing?

Snubbing is a risky form of drilling for oil and natural gas and is known as well intervention. Work in the oilfield industry, including in snubbing activities, can be hazardous and even dangerous.

What is hydraulic workover unit?

Hydraulic Workover is the most cost efficient method to repair all types of wells both onshore and offshore. The Hydraulic Workover Unit (HWU) is a versatile, cost saving and safe tool to perform sand cleanouts, change-out completions and to repair casing leaks.

What is a snubber in the oil field?

In snubbing operations, the pressure in the wellbore acting on the cross-sectional area of the tubular can exert sufficient force to overcome the weight of the drillstring, so the string must be pushed (or "snubbed") back into the wellbore.

What is Bullheading a well?

To forcibly pump fluids into a formation, usually formation fluids that have entered the wellbore during a well control event. Though bullheading is intrinsically risky, it is performed if the formation fluids are suspected to contain hydrogen sulfide gas to prevent the toxic gas from reaching the surface.

What is well completion and workover?

Well Workover and Intervention] The process of performing major maintenance or remedial treatments on an oil or gas well. In many cases, workover implies the removal and replacement of the production tubing string after the well has been killed and a workover rig has been placed on location.
